End-to-end 2D motor design
Native C FEA engine on iPhone, iPad, and Windows. Cloud sync only; solves never leave your device.
Native C FEA engine on iPhone, iPad, and Windows.
Cloud sync only; solves never leave your device
Az magnetostatic, linear triangles, nu(B) Newton-Raphson on laminated steel BH curves
Moving-band rotor stepping over 360 deg electrical, zero-current dq alignment pass
Ld, Lq, incremental inductances, lambda_d/q, Id, Iq, torque ripple, voltage THD
Five-stage workflow from validated geometry to FOC-relevant dq quantities. No external mesher, spreadsheet, or post-processing scripts.
Topology, magnet profile, stator slotting, stack length, rotor skew sectors.
Layer type, coil pitch, parallel paths, winding factor and MMF harmonic audit.

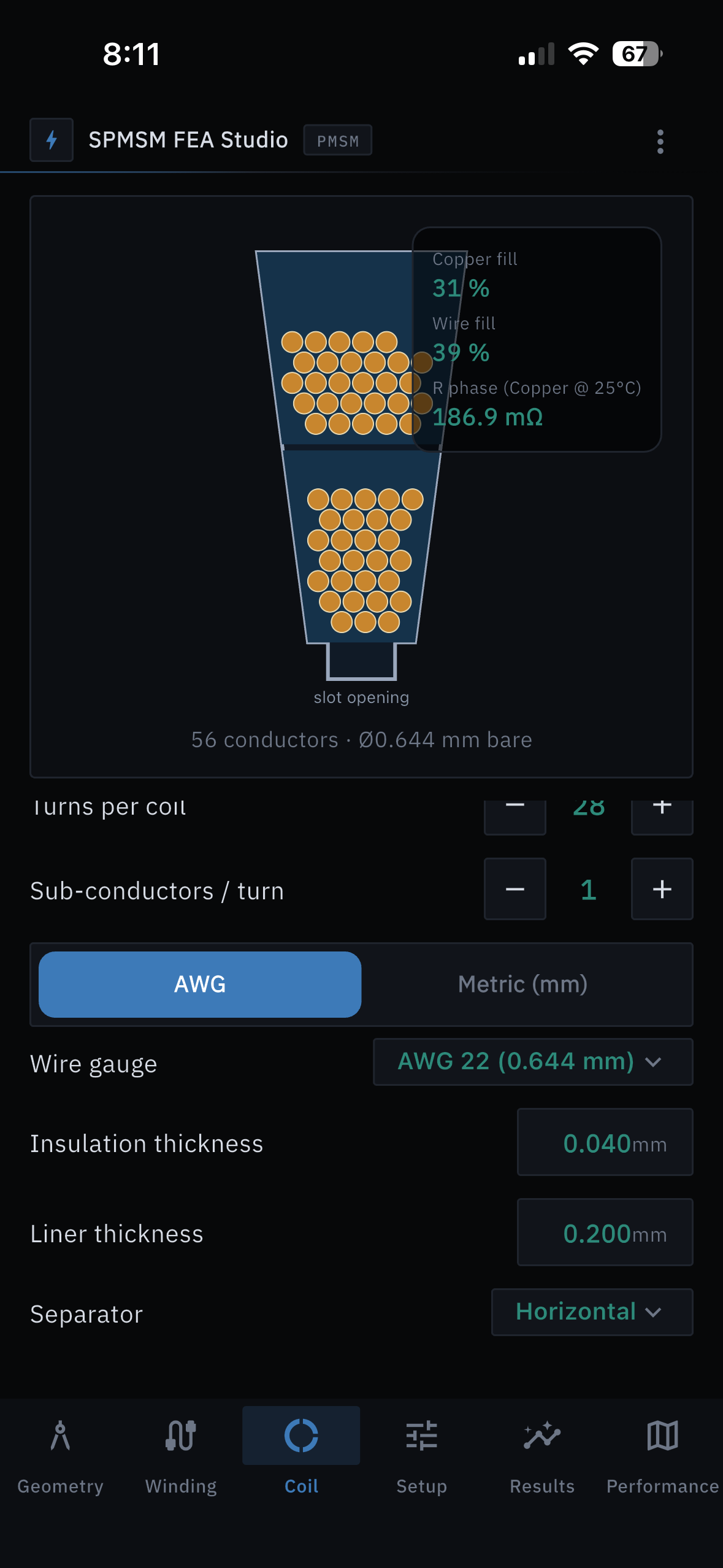

Conductor sizing, slot packing, copper fill, phase resistance, end-winding length.
Speed, bus voltage, Id/Iq or phase advance, materials, loss models, mesh density.
Field maps, waveforms, numerical report, efficiency and loss breakdown.

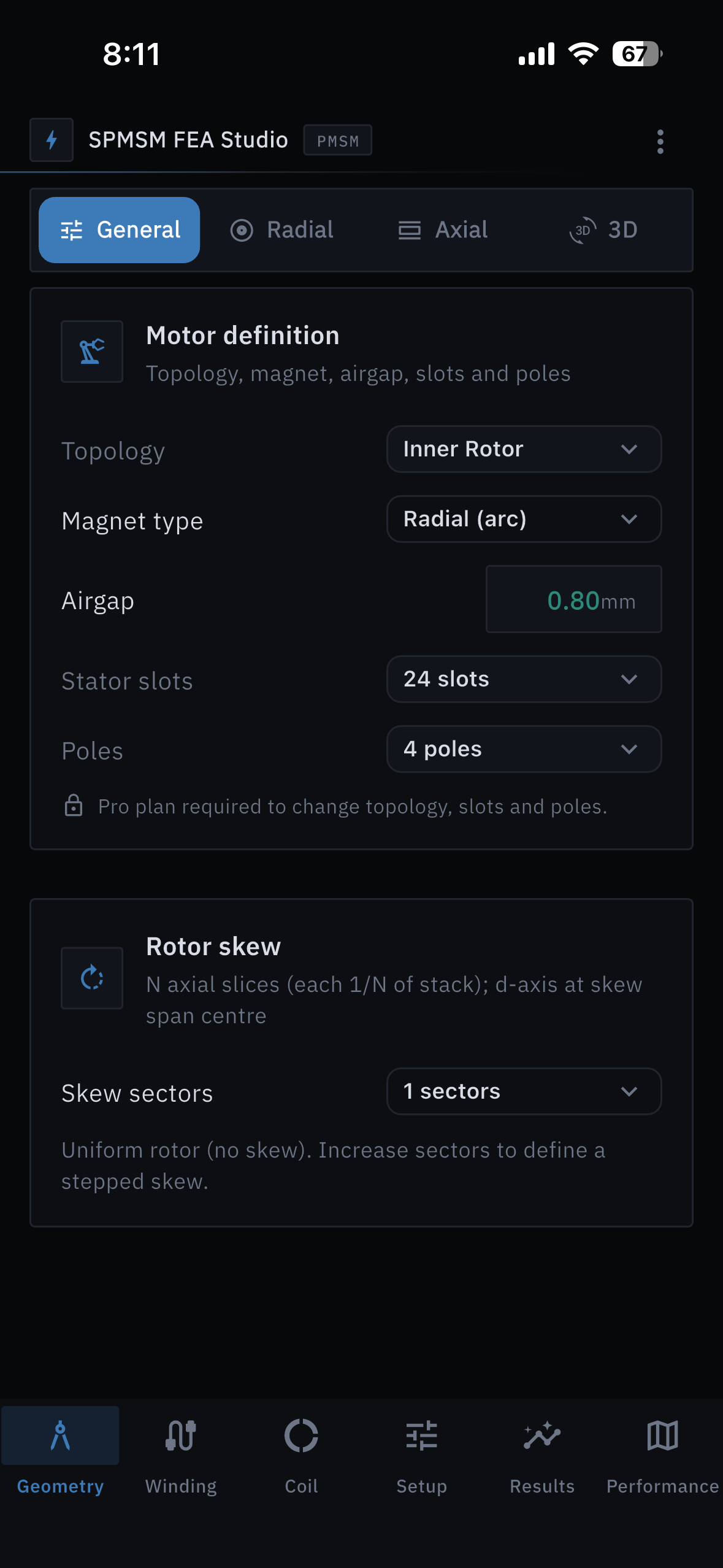

Engineering-grade parameterisation of the motor cross-section. Invalid geometries are rejected before mesh generation. Interactive radial, axial, and 3D solid previews.
| Rotor arrangement | Inner rotor, Outer rotor |
| Magnet geometry | Breadloaf, Radial arc, Flat |
| Magnet params | Thickness, angular span, reduction curve |
| Stator | Slot count, tooth width/depth, opening, tip, bottom fillet |
| Axial | Stack length, end-winding extension |
| Discretisation | N axial slices, each 1/N of stack |
| Sector angle | Electrical degrees between skew sectors |
| Reference | d-axis at skew span centre |
| FEA | Independent solve per slice, aggregated torque |
| Output | Per-sector |B| maps, slice torque waveforms |
Winding layout with kw and MMF spectra before FEA. Operating point by dq current injection or phase advance. Full-period nonlinear solve with Park-frame inductances and flux linkages.

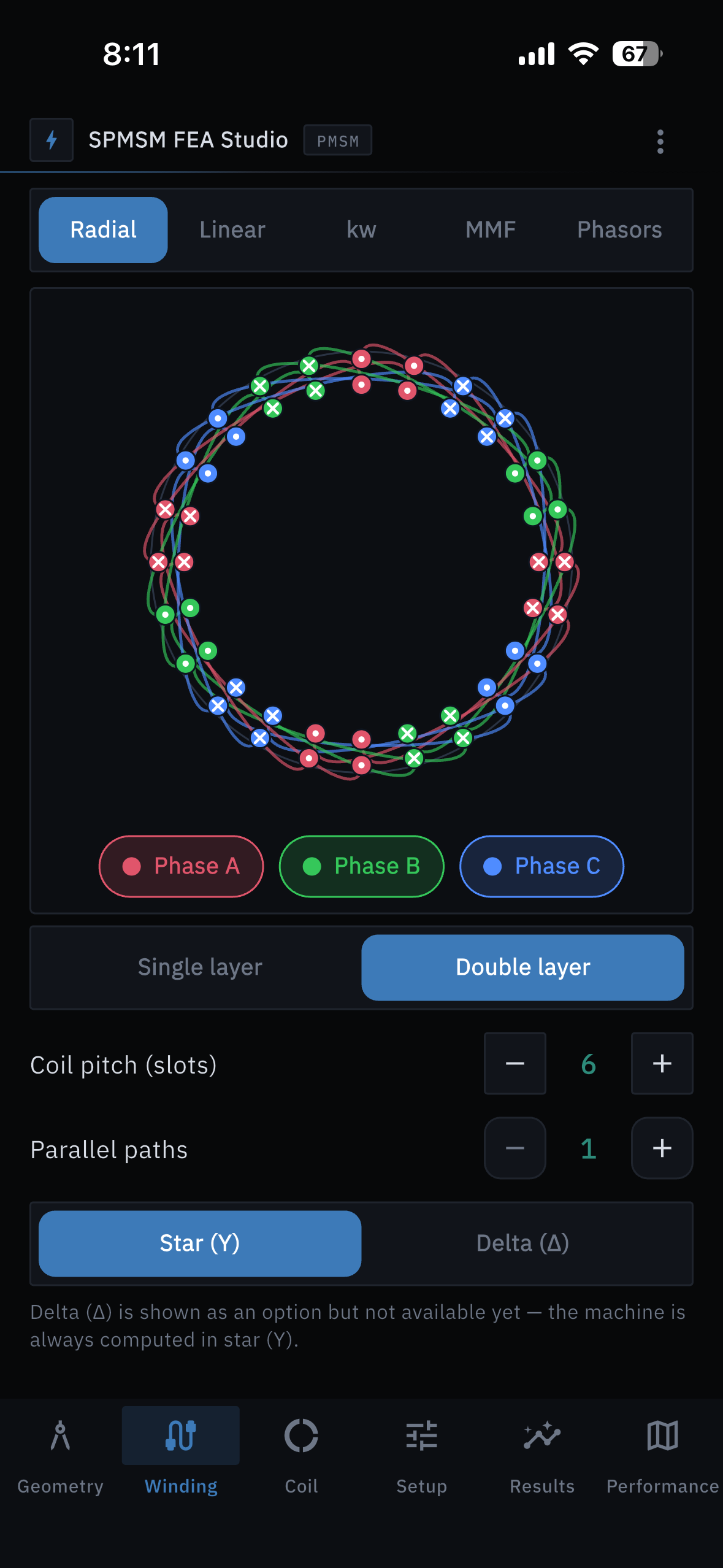

| Configuration | Single / double layer, coil pitch, parallel paths |
| Connection | Star (Y) |
| Winding factor | Harmonic orders 1-30 |

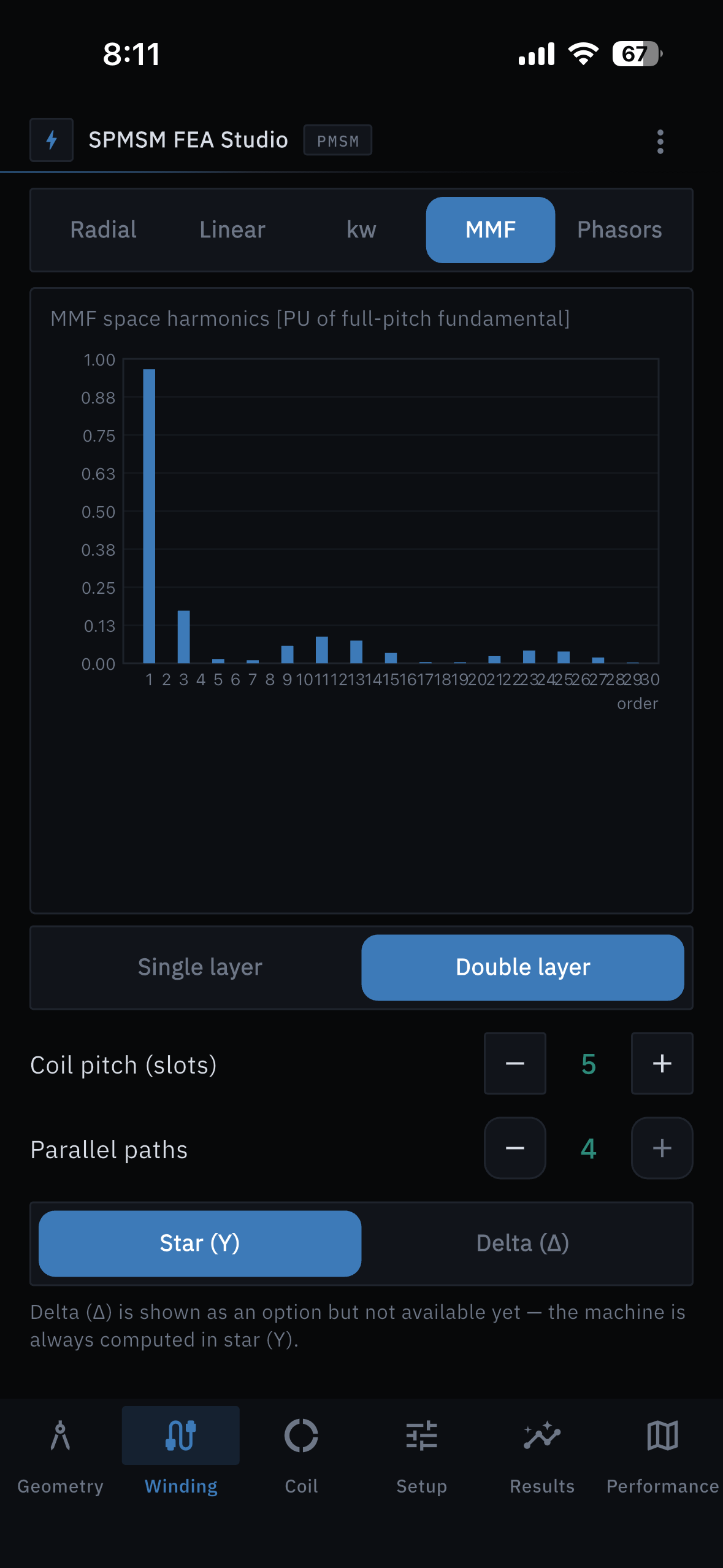

| MMF spectrum | Space harmonics, PU of full-pitch fundamental |
| Coil | Turns, AWG / metric wire, sub-conductors, copper fill |
| Modes | Load, open circuit |
| Excitation | Id, Iq peak or phase advance |
| Inductance | Ld, Lq, incremental, leakage splits |
| Flux linkage | lambda_d, lambda_q Park averages |
| Quality | Back-EMF THD, torque ripple, efficiency |

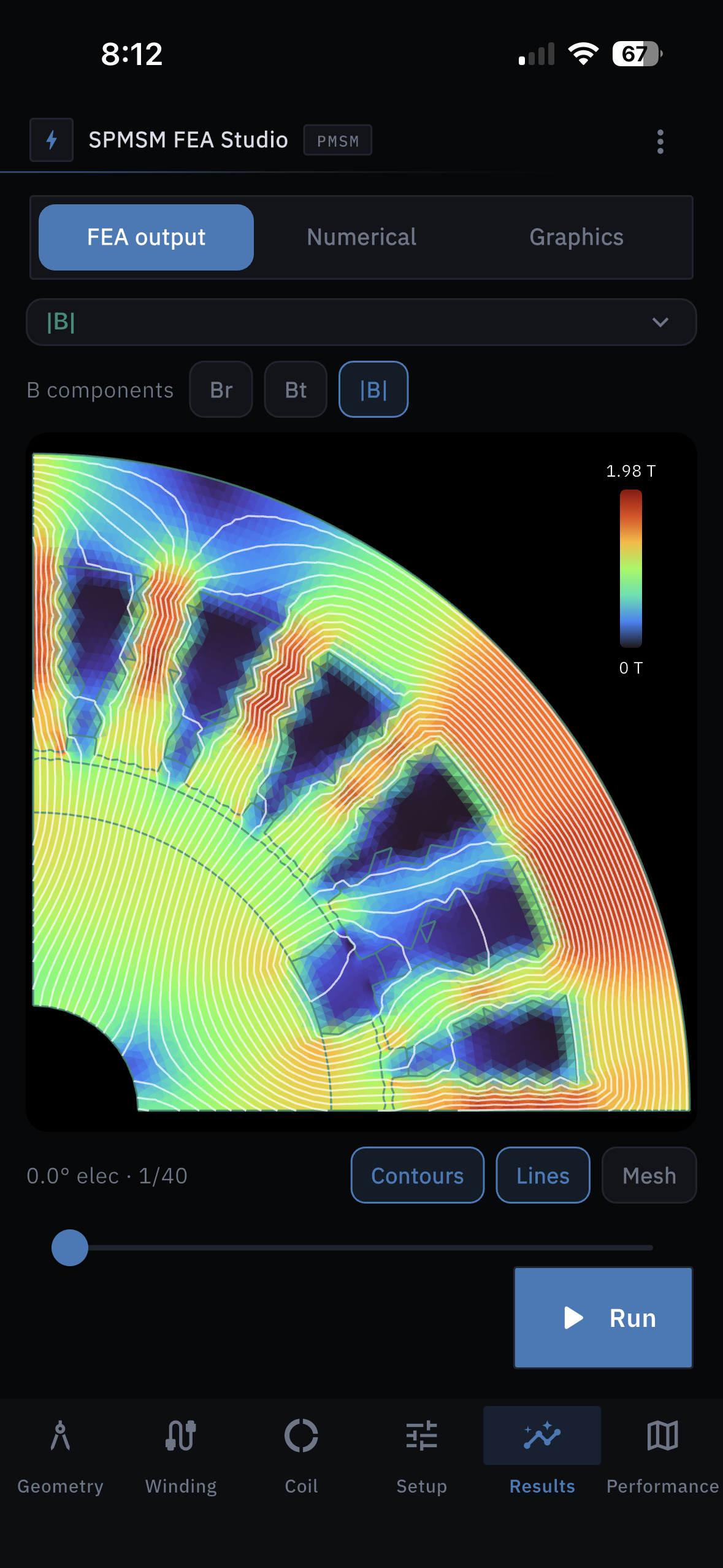

|B|, |H|, Br, BtStructured polar mesh, CSR sparse assembly, Jacobi-preconditioned conjugate gradient, frozen-permeability incremental passes. Built for SPMSM cross-sections, not adapted from a general mesher.
Automated polar discretisation. Region tagging: yoke, teeth, slots, magnets, airgap, rotor. Dirichlet boundary on stator OD.

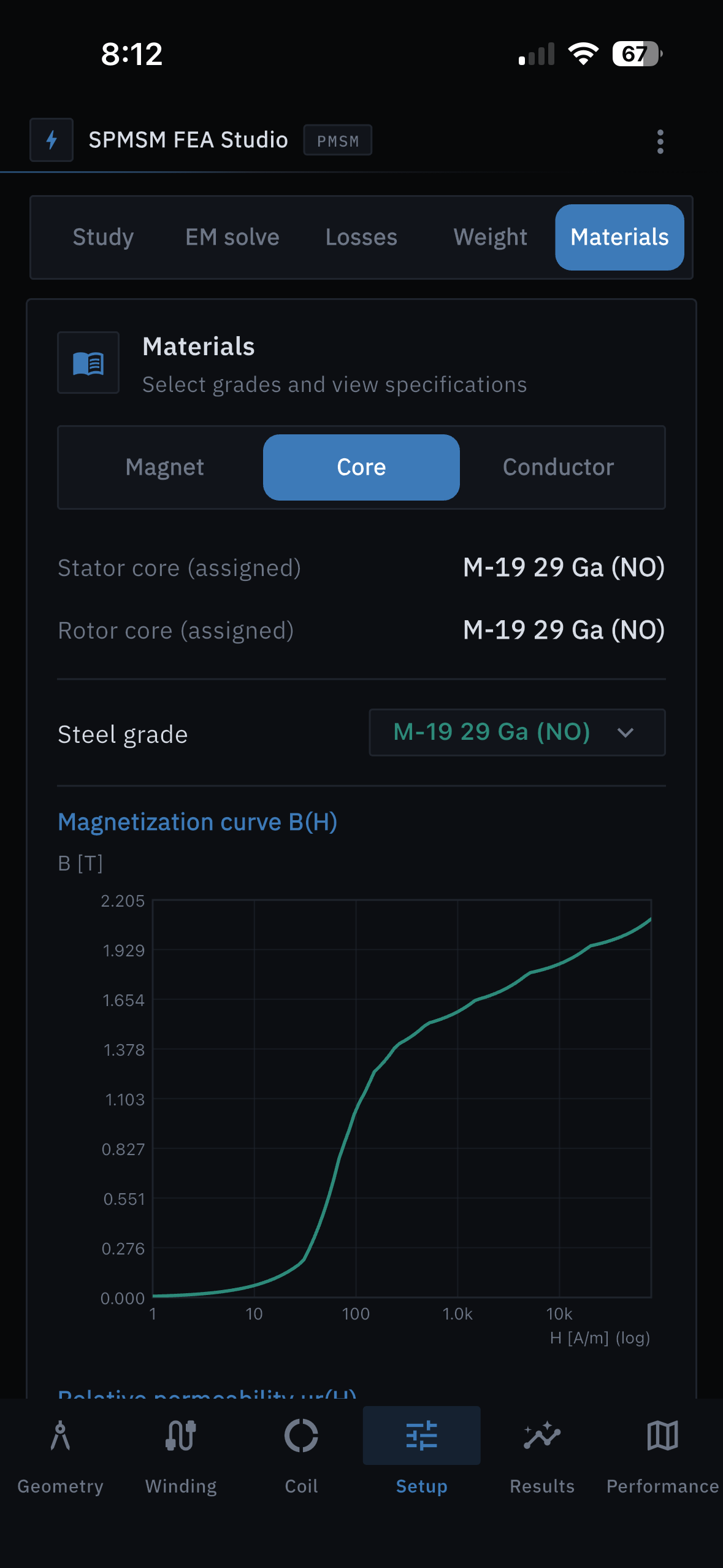

Newton-Raphson on steel BH with reluctivity derivative. Permanent magnet remanence as source term.
Integer-cell moving band over one electrical period. Alignment pass for true dq reference frame.
Per-slice independent FEA. Aggregated axial ripple and mean torque.
dq torque formulation, flux linkage integration, back-EMF from d(lambda)/dt.

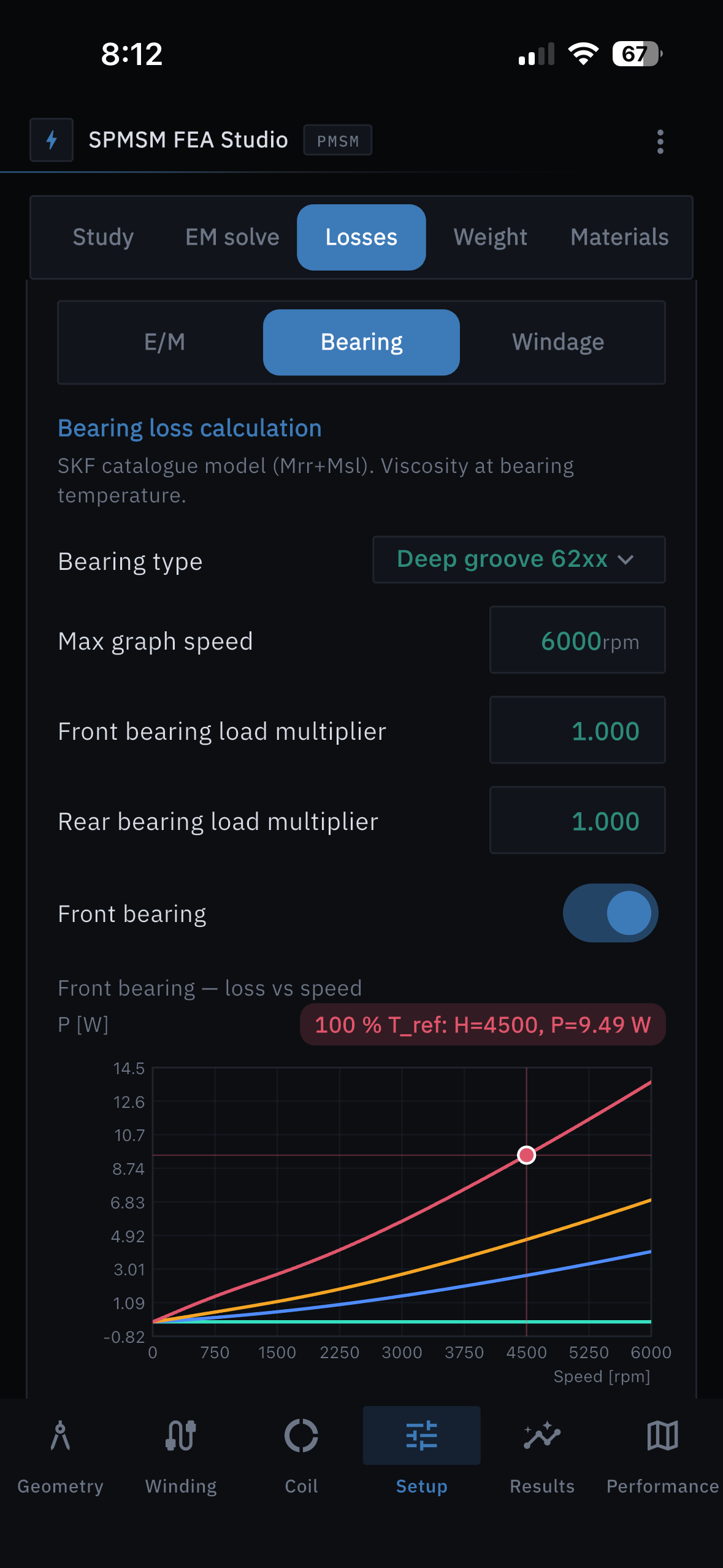

Steinmetz core loss, magnet eddy, SKF bearing catalogue, windage drag, conductor I2R.
Native apps for iPhone, iPad, and Windows — no browser version. One account syncs projects across all devices; cloud sync only, solves never leave your device. Pro is purchased per platform: iPhone and iPad share one App Store subscription; Windows Pro is billed separately via Stripe.
Full SPMSM pipeline in your pocket. Quick parameter sweeps, Id/Iq load points, and dq outputs on-device. Pro via App Store — one subscription also covers iPad.
Large canvas for geometry, |B| field maps, and torque waveforms. Ideal for design reviews and client demos. Pro via the same App Store subscription as iPhone.
Native Windows app with the same workflow. Free .exe download; sign in to sync projects. Pro via Stripe unlocks topology, slots, and poles.
Every platform has a free download. One account syncs projects across iPhone, iPad, and Windows. Pro unlocks topology, slot, and pole-pair changes on each platform you pay for — subscriptions are separate and do not cross over.
iPhone + iPad Pro: one App Store subscription ($29.99/mo or $299/yr). Windows Pro: separate Stripe subscription ($99/mo, $999/yr, or $2,999 lifetime).
$0
Free download on iPhone, iPad, and Windows
$29.99/mo
or $299/year · one App Store subscription for both devices
Billed by Apple. Does not include Windows Pro.
$99/mo
or $999/year or $2,999 lifetime · Stripe
Stripe not configured on server.
Does not include iPhone or iPad Pro.
Sign in with one account on iPhone, iPad, and Windows to sync projects. iPhone and iPad Pro share a single App Store subscription. Windows Pro is a separate Stripe subscription — paying for one platform does not unlock the other. FEA solves always run locally.
No account signed in.
Free on the App Store and as a Windows installer (.exe). Sign in with one account to sync projects across devices. Pro is purchased separately on iOS and Windows to unlock topology, slots, and poles. FEA runs on your device.
